Mastering Footprinting & Infrastructure Enumeration: A Comprehensive Guide

[!NOTE] 🧠 In Real Attacks:

  • Footprinting helps attackers know who to target.
  • Fingerprinting helps them know how to attack.

Infrastructure Based Enumeration

Initial Assessment of Company Website

Finding Presence on internet

  1. SSL Certificates
    • Examine the SSL certificate of the main website to find additional domains and subdomains.
    • Example tool: crt.sh (Certificate Transparency logs) for finding issued certificates.
    • https://crt.sh/ – to identify domain details

Output will be in JSON query

curl -s https://crt.sh/\?q\=inlanefreight.com\&output\=json | jq .

Making List of subdomain

curl -s https://crt.sh/\?q\=inlanefreight.com\&output\=json | jq . | grep name | cut -d":" -f2 | grep -v "CN=" | cut -d'"' -f2 | awk '{gsub(/\\n/,"\n");}1;' | sort -u
  1. Identifying Company-Hosted Servers
    • Use tools like host to check which subdomains point to IP addresses that belong to the company.
    • Focus on IP addresses owned by the company to avoid targeting third-party services.

In subdomain.txt, finding Ip address of each subdomain

for i in $(cat subdomainlist);do host $i | grep "has address" | grep inlanefreight.com | cut -d" " -f1,4;done


blog.inlanefreight.com 10.129.24.93
s3-website-us-west-2.amazonaws.com 10.129.95.250
  1. Shodan for IP Enumeration

We split only ip from previous result.

for i in $(cat subdomainlist);do host $i | grep "has address" | grep inlanefreight.com | cut -d" " -f4 >> ip-addresses.txt;done

Shodan search

for i in $(cat ip-addresses.txt);do shodan host $i;done
  1. DNS Record Analysis

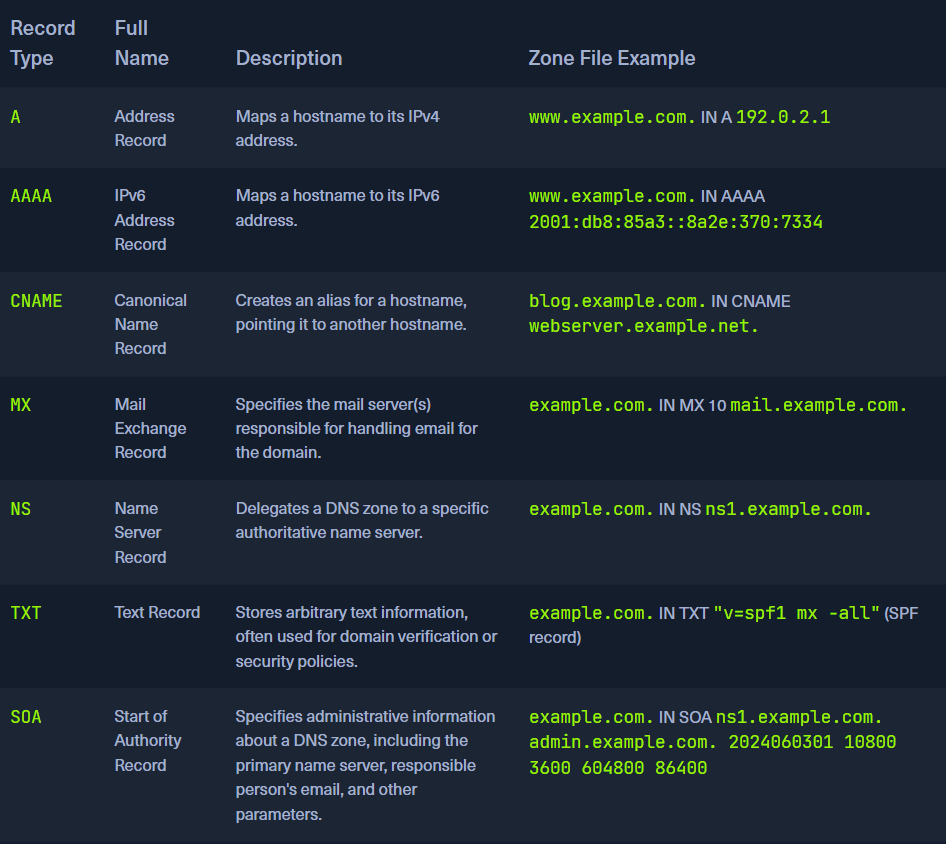

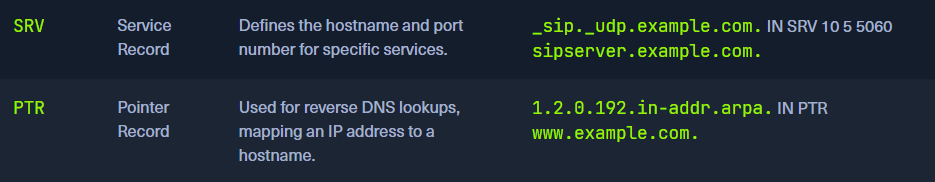

DNS Records
dig any inlanefreight.com

Third-Party Tools for Cloud Discovery:

Top 10 Ports

21/tcp   open     ftp
22/tcp   open     ssh
23/tcp   open     telnet
25/tcp   open     smtp
80/tcp   open     http
110/tcp  open     pop3
139/tcp  open     netbios-ssn
443/tcp  open     https
445/tcp  open     microsoft-ds
3389/tcp open     ms-wbt-server
grep -oP '\d+/tcp\s+open' ports.txt | awk -F'/' '{ printf "%s,", $1 }' | sed 's/,$//'

Services

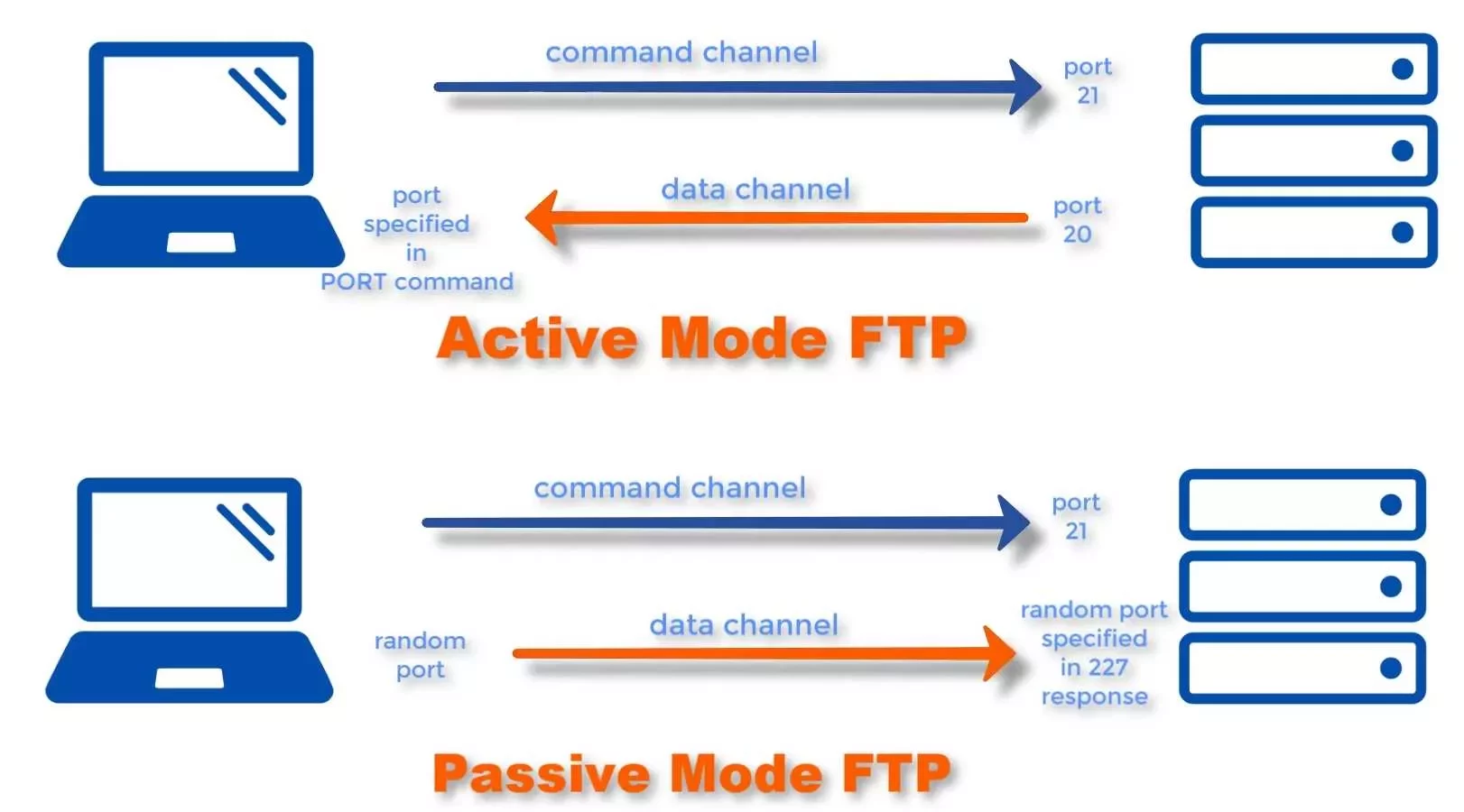

FTP(21)

  1. Active FTP:

    • The client opens a connection on port 21.
    • The server then connects back to the client using a dynamically assigned port for the data channel.
    • Problem: If the client is behind a firewall, the server’s attempt to establish a data connection may be blocked.
  2. Passive FTP:

    • The server opens a port and waits for the client to connect to it, which helps avoid firewall issues on the client side.
    • Advantage: Since the client initiates the connection for both control and data channels, it bypasses firewall restrictions


Anonymous Login
21/tcp open ftp vsftpd 3.0.3
 ftp-anon: Anonymous FTP login allowed (FTP code 230)
$ ftp 10.129.14.136

Connected to 10.129.14.136.
220 "Welcome to the HTB Academy vsFTP service."
Name (10.129.14.136:cry0l1t3): anonymous
Settings Description
hide_ids=YES All user and group information in directory listings will be displayed as “ftp”.
drwxrwxr-x    2 ftp     ftp         4096 Sep 14 17:03 Clients
drwxrwxr-x    2 ftp     ftp         4096 Sep 14 16:50 Documents
ls_recurse_enable=YES Allows the use of recurse listings.
Recursive Listing
ftp> ls -R
Download a File
ftp> get  Notes.txt
Download All Available Files
$ wget -m --no-passive ftp://anonymous:anonymous@10.129.14.136

This may cause trigger because no one in company wants to download all files

Upload a File
ftp> put testupload.txt
Foot Printing the Service
$ sudo nmap -sV -p21 -sC -A 10.129.14.136
Service Interaction – Establishes a raw TCP connection to the FTP server for manual interaction.
$ nc -nv 10.129.14.136 21
$ telnet 10.129.14.136 21

If the FTP server runs with TLS/SSL encryption. Because then we need a client that can handle TLS/SSL. Use the client openssl and communicate with the FTP server.

$ openssl s_client -connect 10.129.14.136:21 -starttls ftp

TFTP(69)

Commands: GET, PUT, CONNECT, QUIT, STATUS

https://medium.com/@aashutos.katare/silent-servers-the-art-of-tftp-enumeration-265c3785a6b4


SMB(139,445)

Port 139SMB originally ran on top of NetBIOS using port 139. Port 445: Later versions of SMB (after Windows 2000) began to use port 445 on top of a TCP stack. Using TCP allows SMB to work over the internet.

SMBclient - Connecting to the Share

Listing shares

$ smbclient -N -L //10.129.14.128

Use specific share

$ smbclient //10.129.14.128/notes
Download Files from SMB
$ smb: \> get prep-prod.txt

From the administrative point of view, we can check these connections using smbstatus. not need for exam.

Samba Status
$ root@samba:~# smbstatus
Footprinting the Service
$ sudo nmap 10.129.14.128 -sV -sC -p139,445

if nmap doesn’t provide much info we can use smbclient or rpcclient

$ rpcclient -U "" 10.129.14.128

No password.

Command of RPCClient Description
srvinfo Server information.
enumdomains Enumerate all domains that are deployed in the network.
querydominfo Provides domain, server, and user information of deployed domains.
netshareenumall Enumerates all available shares.
netsharegetinfo <share> Provides information about a specific share.
enumdomusers Enumerates all domain users.
queryuser <RID> Provides information about a specific user.

Same thing can be done by different tools. helpful for the enumeration of SMB services. We can’t connect only enumeration.

  1. samrdump.py
  2. SMBMap
  3. CrackMapExec
  4. Enum4Linux-ng
Impacket - Samrdump.py
$ samrdump.py 10.129.14.128
SMBmap
$ smbmap -H 10.129.14.128
CrackMapExec
$ crackmapexec smb 10.129.14.128 --shares -u '' -p ''
Enum4Linux-ng - Enumeration
$ ./enum4linux-ng.py 10.129.14.128 -A

Can do entire enumeration.

Enumeration in windows

net view \\dc01 /all

NetBIOS

this to query the NetBIOS name service for valid NetBIOS names, specifying the originating UDP port as 137 with the -r option.

sudo nbtscan -r 192.168.50.0/24

NFS(111,2049)

NFS (Network File System) is a protocol that allows users to access and interact with files over a network as if they were on a local disk. It is predominantly used in Linux and Unix environments, facilitating file sharing between systems in a networked environment.

Foot Printing the Service
$ sudo nmap 10.129.14.128 -p111,2049 -sV -sC

PORT     STATE SERVICE VERSION
111/tcp  open  rpcbind 2-4 (RPC #100000)
| nfs-ls: Volume /mnt/nfs

we have discovered such an NFS service, we can mount it on our local machine.

Show Available NFS Shares
$ showmount -e 10.129.14.128
Mounting NFS Share
$ mkdir target-NFS
$ sudo mount -t nfs 10.129.14.128:/ ./target-NFS/ -o nolock
List Contents with Usernames & Group Names
$ ls -l mnt/nfs/

-rw-r--r-- 1 root     root     1872 Sep 19 17:27 id_rsa
-rw-r--r-- 1 root     root      348 Sep 19 17:28 id_rsa.pub
Unmounting
$ cd ..
$ sudo umount ./target-NFS

DNS(53)



What is CNAME?


DNS Configuration Files

  1. local DNS configuration files – named.conf.local and named.conf.options.
  2. zone files – important
  3. reverse name resolution files

Zone files

A zone file describes a zone completely. There must be precisely one SOA record and at least one NS record. The SOA resource record is usually located at the beginning of a zone file. The main goal of these global rules is to improve the readability of zone files

Foot Printing the Service
dig ns inlanefreight.htb @10.129.14.128

dig <OPTION> DOMAIN NAME @DNS SERVER
DIG - Version Query
 dig CH TXT version.bind 10.129.120.85
DIG - ANY Query
 dig any inlanefreight.htb @10.129.14.128
Zone transfer

A zone transfer is a process where a copy of the DNS records (the zone file) for a domain is transferred from one DNS server to another. It is primarily used to keep multiple DNS servers in sync with each other.

There are two types of zone transfers:

dig axfr inlanefreight.htb @10.129.14.128

If the administrator used a subnet for the allow-transfer option for testing purposes or as a workaround solution or set it to any, everyone would query the entire zone file at the DNS server.

Subdomain Brute Forcing
  1. SecList
[!bash!]$ for sub in $(cat /opt/useful/SecLists/Discovery/DNS/subdomains-top1million-110000.txt);do dig $sub.inlanefreight.htb @10.129.14.128 | grep -v ';\|SOA' | sed -r '/^\s*$/d' | grep $sub | tee -a subdomains.txt;done
  1. DNSENUM(Preferred way)
[!bash!]$ dnsenum --dnsserver 10.129.14.128 --enum -p 0 -s 0 -o subdomains.txt -f /opt/useful/SecLists/Discovery/DNS/subdomains-top1million-110000.txt inlanefreight.htb

SMTP(25)

By default, SMTP servers accept connection requests on port 25. However, newer SMTP servers also use other ports such as TCP port 587.

This port is used to receive mail from authenticated users/servers, usually using the STARTTLS command to switch the existing plaintext connection to an encrypted connection.

Commands Description
AUTH PLAIN AUTH is a service extension used to authenticate the client.
HELO The client logs in with its computer name and thus starts the session.
MAIL FROM The client names the email sender.
RCPT TO The client names the email recipient.
DATA The client initiates the transmission of the email.
RSET The client aborts the initiated transmission but keeps the connection between client and server.
VRFY The client checks if a mailbox is available for message transfer.
EXPN The client also checks if a mailbox is available for messaging with this command.
NOOP The client requests a response from the server to prevent disconnection due to time-out.
QUIT The client terminates the session.

To interact with the SMTP server, we can use the telnet tool to initialize a TCP connection with the SMTP server.

telnet 10.129.14.128 25

Initialization of the session is done with the command – HELO

Here with the help of VRFY command we check whether user root,cry0l1t3 are present. if code 252 then it is confirmed.

VRFY root
252 2.0.0 root


VRFY cry0l1t3
252 2.0.0 cry0l1t3
Send an Email
MAIL FROM: <cry0l1t3@inlanefreight.htb>
250 2.1.0 Ok


RCPT TO: <mrb3n@inlanefreight.htb> NOTIFY=success,failure
250 2.1.5 Ok

DATA

After initialize a tcp connection with server we can send mail to specific accounts.

Open Relay Configuration

An open relay is an SMTP server that is configured to allow anyone on the internet to send emails through it. This configuration can be exploited by attackers to send large volumes of spam, phishing emails, or to perform other malicious activities, all while hiding the true origin of the emails.

Misconfiguration Risks

In many cases, administrators may not fully understand the range of IP addresses that should be allowed to use their SMTP server. To avoid potential disruptions in email traffic, they might misconfigure the SMTP server by allowing all IP addresses (0.0.0.0/0) to send emails through it. mynetworks = 0.0.0.0/0

Foot Printing the Service
$ sudo nmap 10.129.14.128 -sC -sV -p25
Nmap - Open Relay
$ sudo nmap 10.129.14.128 -p25 --script smtp-open-relay -v

IMAP/POP3(110, 143, 993, 995)

IMAP – IMAP allows online management of emails directly on the server and supports folder structures. Thus, it is a network protocol for the online management of emails on a remote server.

POP3 –  it only provides listing, retrieving, and deleting emails as functions at the email server.

IMAP Commands
Command Description
1 LOGIN username password User’s login.
1 LIST "" * Lists all directories.
1 CREATE "INBOX" Creates a mailbox with a specified name.
1 DELETE "INBOX" Deletes a mailbox.
1 RENAME "ToRead" "Important" Renames a mailbox.
1 LSUB "" * Returns a subset of names from the set of names that the User has declared as being active or subscribed.
1 SELECT INBOX Selects a mailbox so that messages in the mailbox can be accessed.
1 UNSELECT INBOX Exits the selected mailbox.
1 FETCH <ID> all Retrieves data associated with a message in the mailbox.
1 CLOSE Removes all messages with the Deleted flag set.
1 LOGOUT Closes the connection with the IMAP server.
POP3 Commands
Command Description
USER username Identifies the user.
PASS password Authentication of the user using its password.
STAT Requests the number of saved emails from the server.
LIST Requests from the server the number and size of all emails.
RETR id Requests the server to deliver the requested email by ID.
DELE id Requests the server to delete the requested email by ID.
CAPA Requests the server to display the server capabilities.
RSET Requests the server to reset the transmitted information.
QUIT Closes the connection with the POP3 server.
Footprinting the Service
$ sudo nmap 10.129.14.128 -sV -p110,143,993,995 -sC
995/tcp open  ssl/pop3 Dovecot pop3d
|_pop3-capabilities: AUTH-RESP-CODE USER SASL(PLAIN) TOP UIDL RESP-CODES CAPA PIPELINING
| ssl-cert: Subject: commonName=mail1.inlanefreight.htb/organizationName=Inlanefreight/stateOrProvinceName=California/countryName=US
cURL

To connect to imaps with username and password

$ curl -k 'imaps://10.129.14.128' --user user:p4ssw0rd
OpenSSL - TLS Encrypted Interaction POP3 & IMAP
$ openssl s_client -connect 10.129.14.128:pop3s
$ openssl s_client -connect 10.129.14.128:imaps

MYSQL(3306)

Footprinting the Service
sudo nmap 10.129.14.128 -sV -sC -p3306 --script mysql*
Interact with mysql
mysql -u root -pP4SSw0rd -h 10.129.14.128

Tip: There shouldn’t be any spaces between ‘-p’ and the password.

In Windows
C:\htb> mysql.exe -u username -pPassword123 -h 10.129.20.13

IMPORTANT TABLE -> Information schema, System schema

IMPORTANT command:

mysql -u <user> -p<password> -h <IP address>
show databases;
use <database>;
show tables;
show columns from <table>;
select * from <table>;
select * from <table> where <column> = "<string>";


MSSQL(1433)

Dangerous Settings
Footprinting the Service
$ sudo nmap --script ms-sql-info,ms-sql-empty-password,ms-sql-xp-cmdshell,ms-sql-config,ms-sql-ntlm-info,ms-sql-tables,ms-sql-hasdbaccess,ms-sql-dac,ms-sql-dump-hashes --script-args mssql.instance-port=1433,mssql.username=sa,mssql.password=,mssql.instance-name=MSSQLSERVER -sV -p 1433 10.129.201.248

can see the hostnamedatabase instance namesoftware version of MSSQL and named pipes are enabled.

MSSQL Ping in Metasploit

Like nmap, We can also use metasploit

msf6 auxiliary(scanner/mssql/mssql_ping)

If we can guess or gain access to credentials, this allows us to remotely connect to the MSSQL server and start interacting with databases using T-SQL (Transact-SQL).

$ python3 mssqlclient.py Administrator@10.129.201.248 -windows-auth

OR

$ impacket-mssqlclient Administrator:Lab123@192.168.50.18 -windows-auth

Oracle TNS(1521)

$ sudo nmap -p1521 -sV 10.129.204.235 --open

System Identifier (SID) is a unique name that identifies a particular database instance. When a client connects to an Oracle database, it specifies the database’s SID along with its connection string.

Nmap - SID Bruteforcing
$ sudo nmap -p1521 -sV 10.129.204.235 --open --script oracle-sid-brute

odat.py tool to perform a variety of scans to enumerate

$ ./odat.py all -s 10.129.204.235

An retrieve database names, versions, running processes, user accounts, vulnerabilities, misconfigurations. We can even get credential of users

user/pass

SQLplus - Log In
$ sqlplus user/pass@10.129.204.235/XE

[!NOTE]

sqlplus: error while loading shared libraries: libsqlplus.so: cannot open shared object file: No such file or directory, please execute the below, taken from here.

$ sudo sh -c "echo /usr/lib/oracle/12.2/client64/lib > /etc/ld.so.conf.d/oracle-instantclient.conf

using this account to log in as the System Database Admin (sysdba), giving us higher privileges. This is possible when the user scott has the appropriate privileges typically granted by the database administrator

Oracle RDBMS - Database Enumeration
$ sqlplus scott/tiger@10.129.204.235/XE as sysdba
Oracle RDBMS - Extract Password Hashes

After getting admin privileges we can dump hashes

SQL> select name, password from sys.user$;
OS Path
Linux /var/www/html
Windows C:\inetpub\wwwroot

Web server Running Path in different OS


Oracle RDBMS - File Upload
$ echo "Oracle File Upload Test" > testing.txt


$ ./odat.py utlfile -s 10.129.204.235 -d XE -U scott -P tiger --sysdba --putFile C:\\inetpub\\wwwroot testing.txt ./testing.txt

To verify

$ curl -X GET http://10.129.204.235/testing.txt

IPMI(623 - UDP)

Definition: The Intelligent Platform Management Interface (IPMI) is a standardized set of specifications for hardware-based host management systems. It allows for management and monitoring of computer systems independently of the host’s BIOS, CPU, firmware, and operating system.

Components of IPMI

  1. Baseboard Management Controller (BMC):

    • Role: Central micro-controller managing IPMI functions.
    • Implementation: Typically embedded in motherboards or added as a PCI card.
  2. Intelligent Chassis Management Bus (ICMB):

    • Role: Allows communication between chassis.
  3. Intelligent Platform Management Bus (IPMB):

    • Role: Extends the BMC functionality.
  4. IPMI Memory:

    • Role: Stores system event logs, repository data, etc.
  5. Communications Interfaces:

    • Types: Local system interfaces, serial, LAN, ICMB, PCI Management Bus.
$ sudo nmap -sU --script ipmi-version -p 623 ilo.inlanfreight.local

Metasploit scanner module – (auxiliary/scanner/ipmi/ipmi_version)

Product Username Password
Dell iDRAC root calvin
HP iLO Administrator randomized 8-character string consisting of numbers and uppercase letters
Supermicro IPMI ADMIN ADMIN

Default credentials of BMC’s

If above passwords do not work. then use a flaw in the RAKP protocol in IPMI 2.0. The server sends a salted SHA1 or MD5 hash of the user’s password to the client before authentication takes place.

Hashcat mode 7300

To retrieve hashes

auxiliary(scanner/ipmi/ipmi_dumphashes)

SNMP(161)

created to monitor network devices. In addition, this protocol can also be used to handle configuration tasks and change settings remotely.

snmp enabled HW – routers, switches, servers, IoT devices

A MIB is a text file in which all queryable SNMP objects of a device are listed in a standardized tree hierarchy. It contains at least one Object Identifier (OID).


Footprinting the Service

sudo nmap -sU --open -p 161 192.168.50.1-254 -oG open-snmp.txt

Hosts listening snmp. Alternative for nmap. Onesixtyone can be used to brute-force the names of the community strings

kali@kali:~$ echo public > community
kali@kali:~$ echo private >> community
kali@kali:~$ echo manager >> community

kali@kali:~$ for ip in $(seq 1 254); do echo 192.168.50.$ip; done > ips

kali@kali:~$ onesixtyone -c community -i ips
Scanning 254 hosts, 3 communities
192.168.50.151 [public] Hardware: Intel64 Family 6 Model 79 Stepping 1 AT/AT

Snmpwalk is used to query the OIDs with their information.

snmpwalk -c public -v1 192.168.50.151 1.3.6.1.4.1.77.1.2.25

-v for version (1,2,2c) -c for community (public, private)

last digits are explained in pic.


Once we know a community string, we can use it with braa to brute-force the individual OIDs and enumerate the information behind them.

Braa
$ braa <community string>@<IP>:.1.3.6.*   # Syntax

$ braa public@10.129.14.128:.1.3.6.*

To get the extended objects the following command can be used:

snmpwalk -v2c -c public 192.168.50.151 NET-SNMP-EXTEND-MIB::nsExtendObjects

RDP(3389)

RDP works at the application layer in the TCP/IP

$ nmap -sV -sC 10.129.201.248 -p3389 --script rdp*
RDP Security Check
$ ./rdp-sec-check.pl 10.129.201.248

we can connect to RDP servers on Linux using xfreerdprdesktop, or Remmina and interact with the GUI of the server accordingly.

enable RDP

reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Terminal Server" /v fDenyTSConnections /t REG_DWORD /d 0 /f

Linux Remote Management Protocols

1. use ssh audit
./ssh-audit.py 10.129.14.132

To change Auth method

ssh -v cry0l1t3@10.129.14.132 -o PreferredAuthentications=password

SSH-1.99-OpenSSH_3.9p1 - can use both protocol versions SSH-1 and SSH-2, and we are dealing with OpenSSH server version 3.9p1.

SSH-2.0-OpenSSH_8.2p1 - we are dealing with an OpenSSH version 8.2p1 which only accepts the SSH-2 protocol version.


Attacking SSH
hydra -l george -P /usr/share/wordlists/rockyou.txt -s 2222 ssh://192.168.50.201

Rsync - to copy files.

2. Rsync

Overview

Key Features

Example Commands


Windows Remote Management Protocols

1. RDP
hydra -l george -P /usr/share/wordlists/rockyou.txt -s 2222 rdp://192.168.50.201

2. WinRM

Purpose: Facilitates remote management of Windows systems via command-line interfaces.


3. WMI

Purpose: Provides comprehensive access to management data and configuration settings across Windows systems. WMI offers extensive management capabilities and is integral for Windows system administration.

$ wmiexec.py Cry0l1t3:"P455w0rD!"@10.129.201.248 "hostname"

END OF LOG
